Z370M PRO4

S$205.00

S$205.00

Brand :

Asrock

Product Code :

Z370M PRO4

Qty :

  • share

    Share

    Z370M PRO4

    Z370M PRO4

    Prepare yourself well to enjoy the impressive world of Virtual Reality. ASRock’s VR Ready motherboards are definitely the one you’re looking for premium quality is assured by rigorous testing during development. The sturdy components and rock-solid performance makes you completely immersive in the VR scenario. Users can be assured to experience VR enjoyments without any compatibility problems.

    Recipient :

    * Required fields

      or  Cancel

description

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

The above user interface picture is a sample for reference. The actual user interface may vary with the updated software version.

Specifications

  • Unique Feature
    ASRock Super Alloy
    - Premium 45A Power Choke
    - Sapphire Black PCB
    - High Density Glass Fabric PCB
    ASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) Technology
    ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
    ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
    ASRock Live Update & APP Shop
  • CPU
    - Supports 8th Generation Intel® Core™ Processors (Socket 1151)
    - Digi Power design

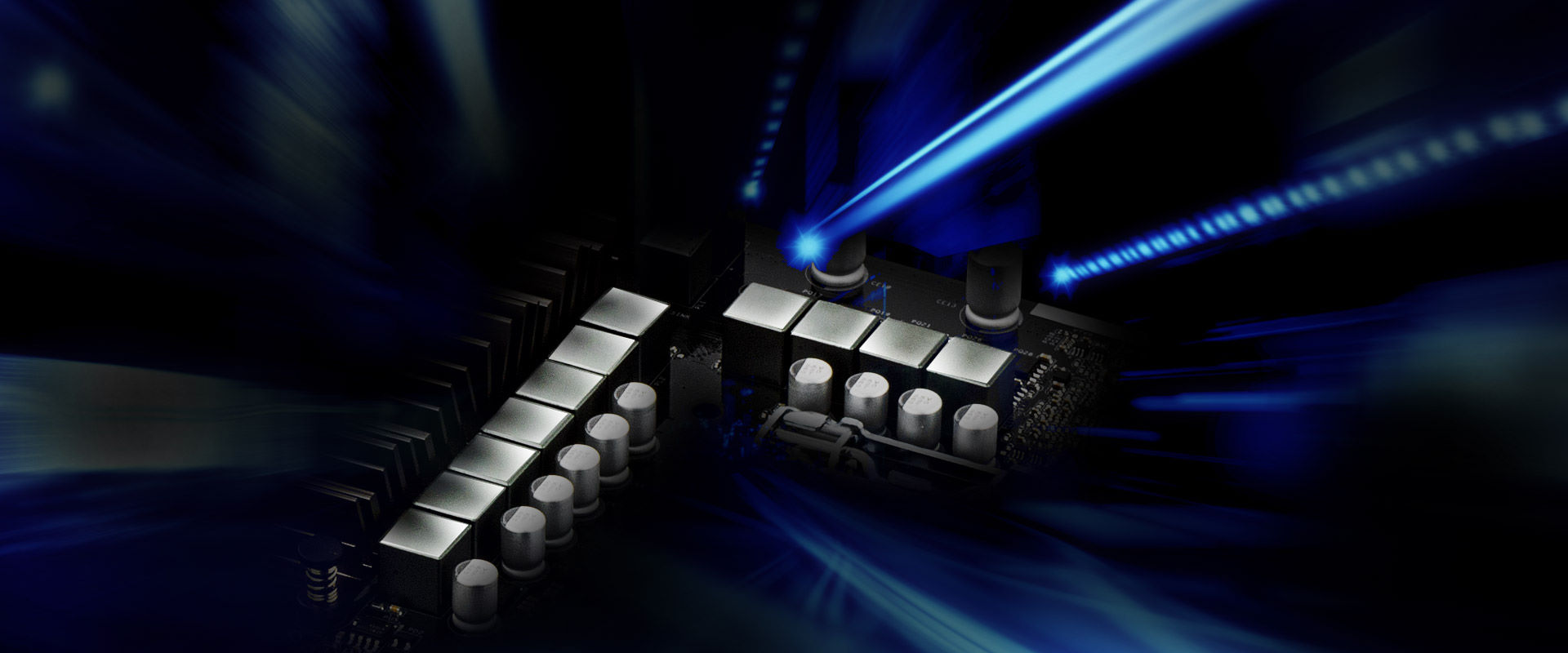

    - 10 Power Phase design
    - Supports Intel® Turbo Boost 2.0 Technology
    - Supports Intel® K-Series unlocked CPUs
    - Supports ASRock BCLK Full-range Overclocking
  • Chipset
    - Intel® Z370
  • Memory

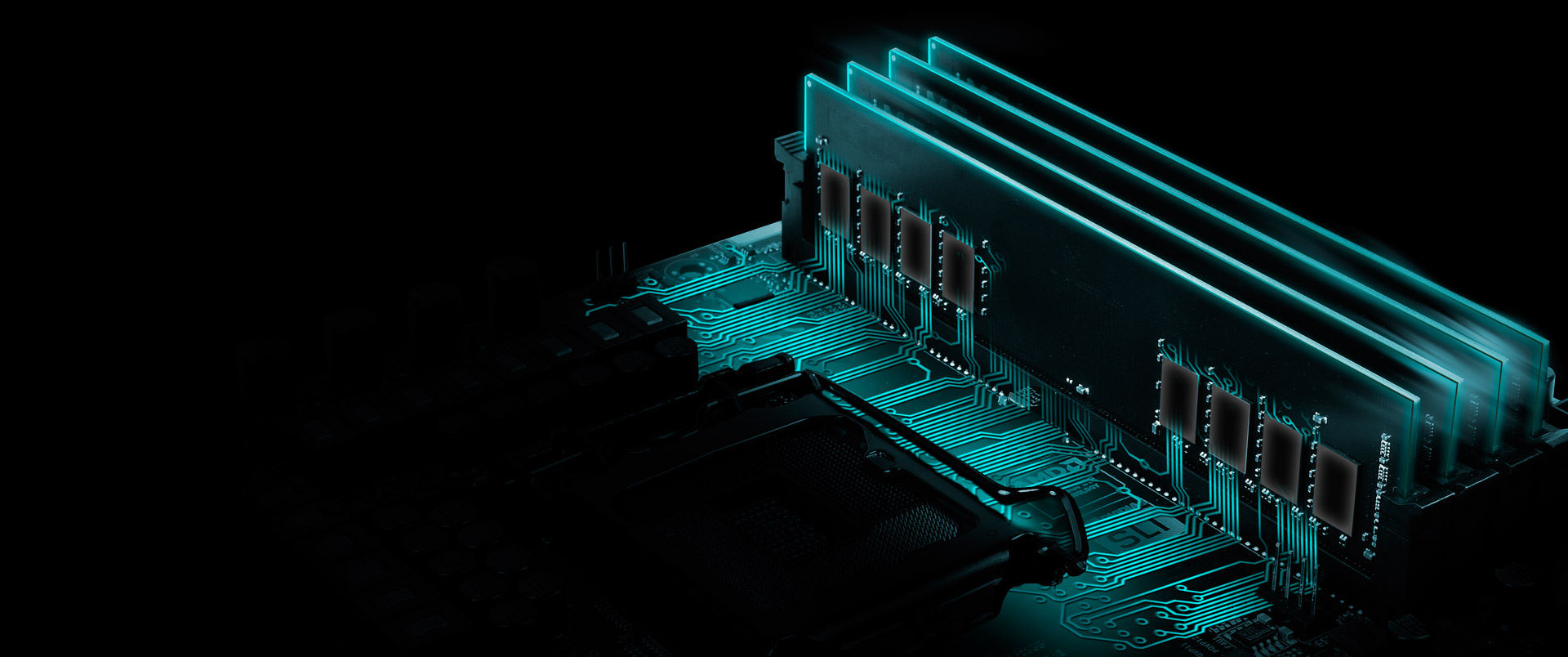

    - Dual Channel DDR4 Memory Technology
    - 4 x DDR4 DIMM Slots
    - Supports DDR4 4300+(OC)* / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933(OC) / 2800(OC) / 2666 / 2400 / 2133 non-ECC, un-buffered memory
    - Supports ECC UDIMM memory modules (operate in non-ECC mode)
    - Max. capacity of system memory: 64GB**
    - Supports Intel® Extreme Memory Profile (XMP) 2.0
    - 15μ Gold Contact in DIMM Slots

    *8th Gen Intel® CPU supports DDR4 up to 2666.
    Please refer to Memory Support List on ASRock's website for more information.

    **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
  • BIOS
    - 128Mb AMI UEFI Legal BIOS with multilingual GUI support
    - ACPI 6.0 Compliant wake up events
    - SMBIOS 2.7 Support
    - CPU, DRAM, PCH 1.0V, VCCIO, VCCSA, VCCST Voltage Multi-adjustment
  • Graphics
    - Supports Intel® UHD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel®InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® UHD Graphics
    - DirectX 12
    - HWA Encode/Decode: VP9 8-bit, VP9 10- bit (Encode only), VP8, HEVC (MPEG-H Part2, h.265), AVC (MPEG4, h.264), MPEG2-Part2 (h.262), JPEG/MJPEG,VC-1
    - Max. shared memory 1024MB
    - Three graphics output options: D-Sub, DVI-D and HDMI
    - Supports Triple Monitor
    - Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 30Hz
    - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
    - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
    - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
    - Supports HDCP with DVI-D and HDMI Ports
    - Supports 4K Ultra HD (UHD) playback with DVI-D and HDMI Ports

    *Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

    **The size of maximum shared memory may vary from different operating systems.
  • Audio
    - 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)*
    - Premium Blu-ray Audio support
    - Supports Surge Protection

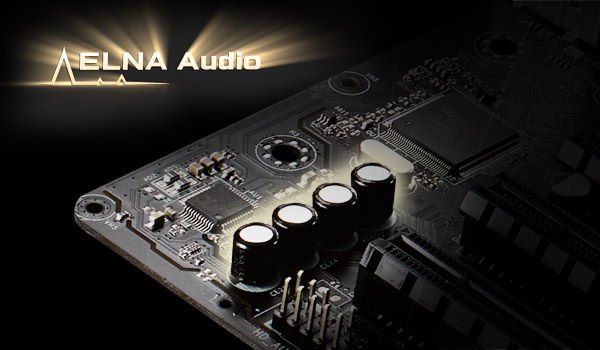

    - ELNA Audio Caps

    *To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
  • LAN
    - Gigabit LAN 10/100/1000 Mb/s
    - Giga PHY Intel® I219V
    - Supports Wake-On-LAN
    - Supports Lightning/ESD Protection
    - Supports Energy Efficient Ethernet 802.3az
    - Supports PXE
  • Slots
    - 2 x PCI Express 3.0 x16 Slots (PCIE1: x16 mode; PCIE4: x4 mode)*
    - 2 x PCI Express 3.0 x1 Slots (Flexible PCIe)
    - Supports AMD Quad CrossFireX™ and CrossFireX™

    *Supports NVMe SSD as boot disks
  • Storage
    - 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 15), NCQ, AHCI and Hot Plug*
    - 1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**
    - 1 x Ultra M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**

    *If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.

    **Supports Intel® Optane™ Technology
    Supports NVMe SSD as boot disks
    Supports ASRock U.2 Kit
  • Connector
    - 1 x Print Port Header
    - 1 x COM Port Header
    - 1 x TPM Header
    - 1 x Chassis Intrusion and Speaker Header
    - 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)*
    - 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)**
    - 1 x 24 pin ATX Power Connector
    - 1 x 8 pin 12V Power Connector
    - 1 x Front Panel Audio Connector
    - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
    - 2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (Supports ESD Protection)
    - 1 x Performance Mode / Easy OC Header

    *The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

    **CHA_FAN1 and CHA_FAN2 can auto detect if 3-pin or 4-pin fan is in use.
  • Rear Panel I/O
    - 1 x PS/2 Mouse Port
    - 1 x PS/2 Keyboard Port
    - 1 x D-Sub Port
    - 1 x DVI-D Port
    - 1 x HDMI Port
    - 1 x USB 2.0 Port (Supports ESD Protection)
    - 4 x USB 3.1 Gen1 Type-A Ports (Supports ESD Protection)
    - 1 x USB 3.1 Gen1 Type-C Port (Supports ESD Protection)
    - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
    - HD Audio Jacks: Line in / Front Speaker / Microphone
  • Software and UEFI
    Software
    - ASRock A-Tuning
    - ASRock XFast LAN
    UEFI
    - ASRock EZ Mode
    - ASRock Full HD UEFI
    - ASRock My Favorites in UEFI
    - ASRock Instant Flash
    - ASRock Internet Flash
    - ASRock Easy RAID Installer

    *These utilities can be downloaded from ASRock Live Update & APP Shop.
  • Support CD
    - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
  • Accessories
    - Quick Installation Guide, Support CD, I/O Shield
    - 2 x SATA Data Cables
    - 2 x Screws for M.2 Sockets
  • Hardware Monitor
    - CPU/Chassis temperature sensing
    - CPU/Chassis Fan Tachometer
    - CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
    - CPU/Chassis Fan multi-speed control
    - CASE OPEN detection
    - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, PCH 1.0V
  • Form Factor
    - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
    - Solid Capacitor design
  • OS
    - Microsoft® Windows® 10 64-bit
  • Certifications
    - FCC, CE
    - ErP/EuP ready (ErP/EuP ready power supply is required)
